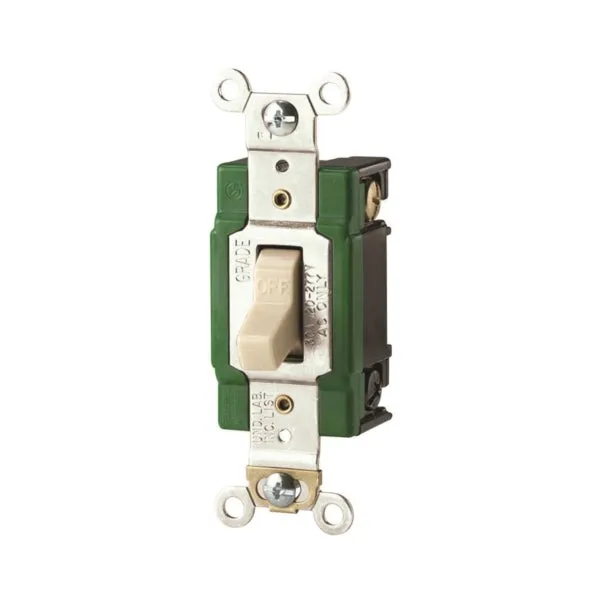

Industrial design cam action mechanism insures quiet switch action. Color-coded faces identify amperage that is blue 15 A, red 20 A, green 30 A. Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure. Back and side wire terminals accept up to number 10 solid or stranded wire. Ground screw terminal standard. 0.050 in thick steel mounting strap zinc-plated for corrosion resistance. 30 A, 120/277 V rating for fluorescent lighting fixtures. Combination slot/Phillips head mounting and terminal screws. Meets all UL 20 requirements, Federal specifications WS 896.
Product Details
Manufacturer:
Manufacturer's Part Number: 3032V
Show me more
Product Specifications
| Actuator Type | Cam |
| Color | Ivory |
| Contact Material | Brass |
| Current Rating | 30 A |
| Housing Material | Polycarbonate |
| Mounting Type | Flush |
| Number of Poles | 2 |
| Temperature Rating | -20 to 70 deg C |
| Terminal Type | Screw |
| Voltage Rating | 120/277 V |
